SUNNYHEAT has developed in many years of research with the latest technical means an infrared panel specifically for animal breeding! Space-saving and effective is the heating panel. It is easy to install - plug in - ready! But what is at the SUNNYHEAT Agricultural panel so special? What distinguishes it from an infrared lamp or an ordinary SUNNYHEAT heating panel?

The operation of SUNNYHEAT Agricultral panel is specially geared towards animal breeding. The SUNNYHEAT Agricultural panel is not meant to heat your entire stables, but only specifically where you need the heat - near by the animals. EA high energy savings is possible because you often do not need to heat up the animals, but only ensure that the animal does not lose its body warmth. The external temperature sensor from SUNNYHEAT helps you also. Targeted to where your animals stay, it ensures that the required temperature is possible precisely maintained.

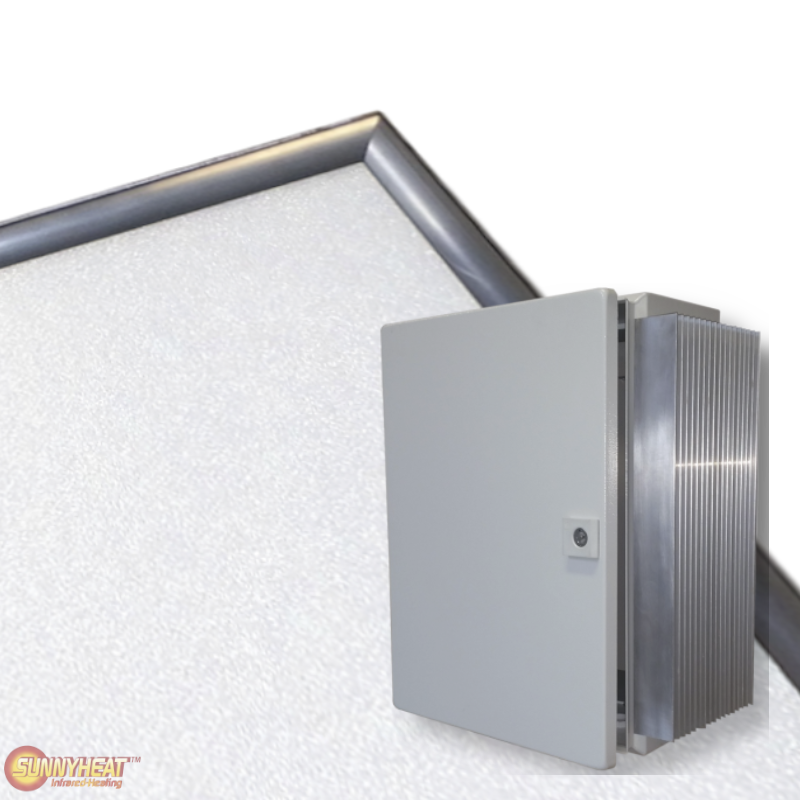

Up to six agricultural panels are connected to an electronic box. In this is the electronic from the six panels integrated. Because of that, a simple maintenance is ensured. The control with the control element is simple via radio. Unlike the infrared lamps which are commonly used the Agricultural panel works with low temperature, therefore you can save energy and have no increased risk of fire!

Due to the low air turbulence contrary to a gas heater, the toxic ammonia fumes will not easily dispersed in the air. A gentle and natural heating for animal and owner.












Technical data

Surface ESG-Glass (Safety glass)
Glass type
Frame Aluminium
Voltage 230 V / 50 Hz
Supply voltage
U~ = 205 - 240 V
Radiation temperature
Variable between 0°C until 180°C electronically regulated
Control system
Integrated into heating system
Operation element and room thermostat
Safety temperature limiting
Over temperature guard
Remote receiver
433.92 MHz
Standby consumption
0.5 W
Protection IP20

Ceiling mounting,

mounting with SUNNYHEAT wall mounting angle set
SUNNYHEAT Certifications


CREA SYSTEMS offers you certified quality!

View more
Advantages infrared heating


What are the strength of a SUNNYHEAT infrared heating?

View more


You ask questions, SUNNYHEAT answers...

View more


Discover the unique on SUNNYHEAT!

View more

The Agricultural panel at one glance!

  • Selective heating
    Different temperatures for young animals and older animals possible
  • No fire hazard!
    No increased fire hazard as in the case of positioning an infrared lamp
  • Easy installation
    Merely electricity and a power outlet is required
  • Fewer odour emissions
    No air circulation, fewer ammonia gas emissions through radiant heat
  • No dust circulation
    No air circulation, therefore less circulation of other particles
  • Precise temperature control
    Exact adjustment of the temperature to the desired temperature
  • Natural warmth
    Same radiant heat as from the sun
  • No maintenance costs
    No expensive maintenance work required
  • No evaporation in the air
    The radiant heat does not dry out the air

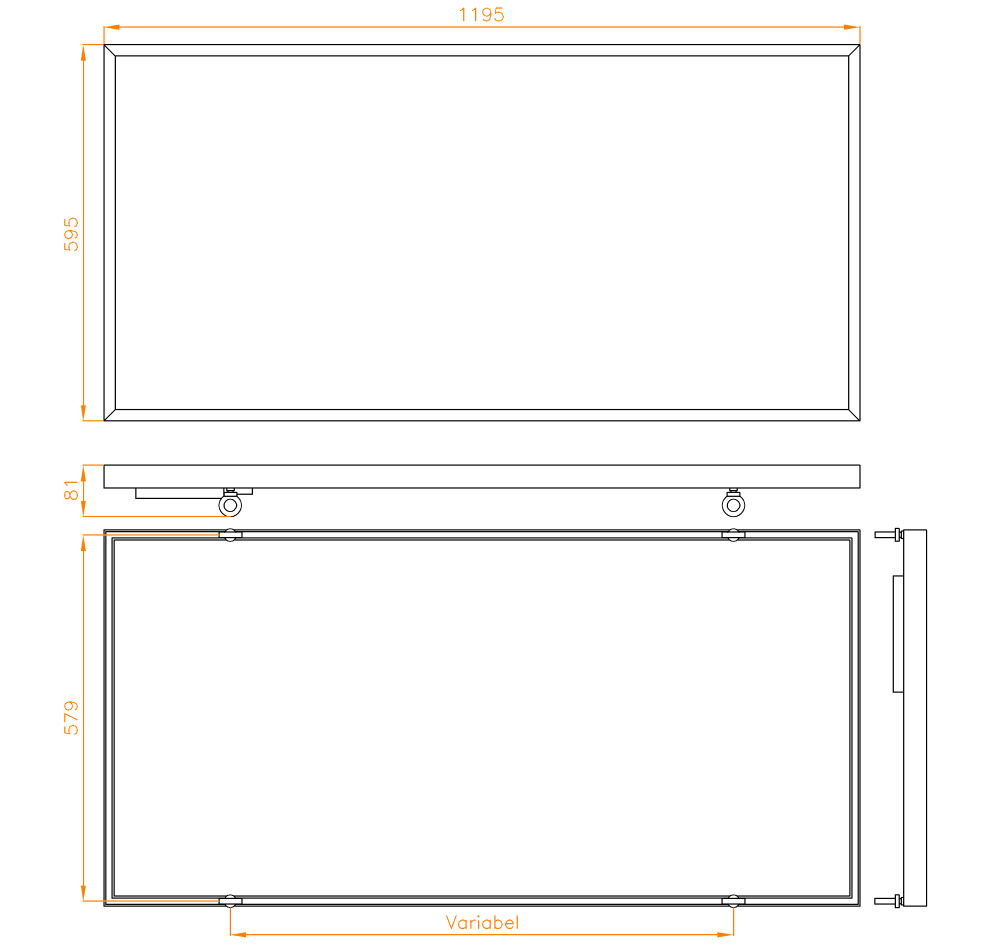

Models 60's series

The series with 60 cm width.

Article Format Glass color
Frame Weight Max. Power
221103 60 x 120 cm white unvarnished  about 15.6 kg 2000 W
