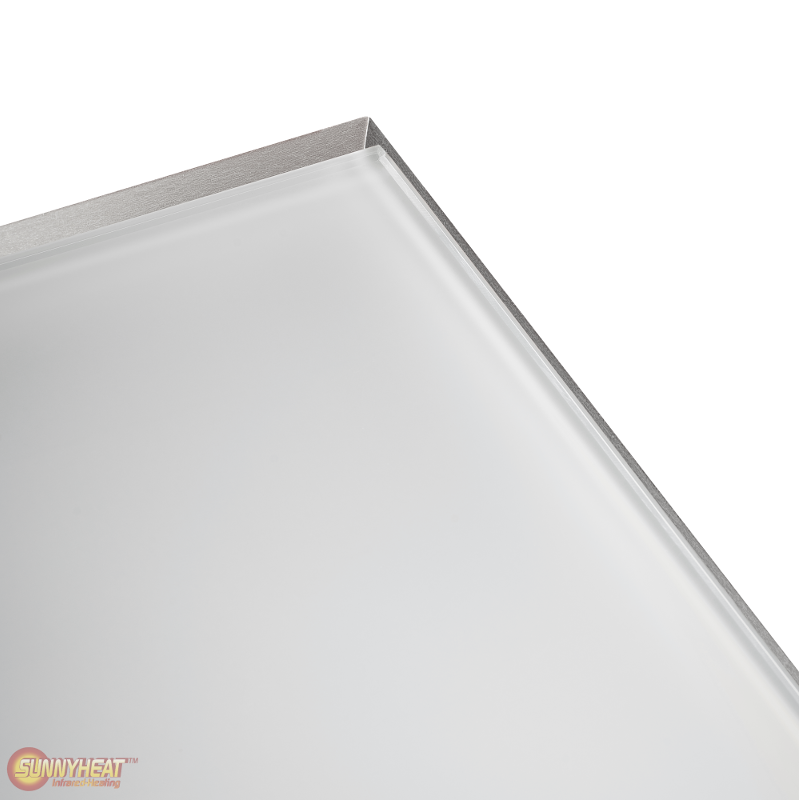

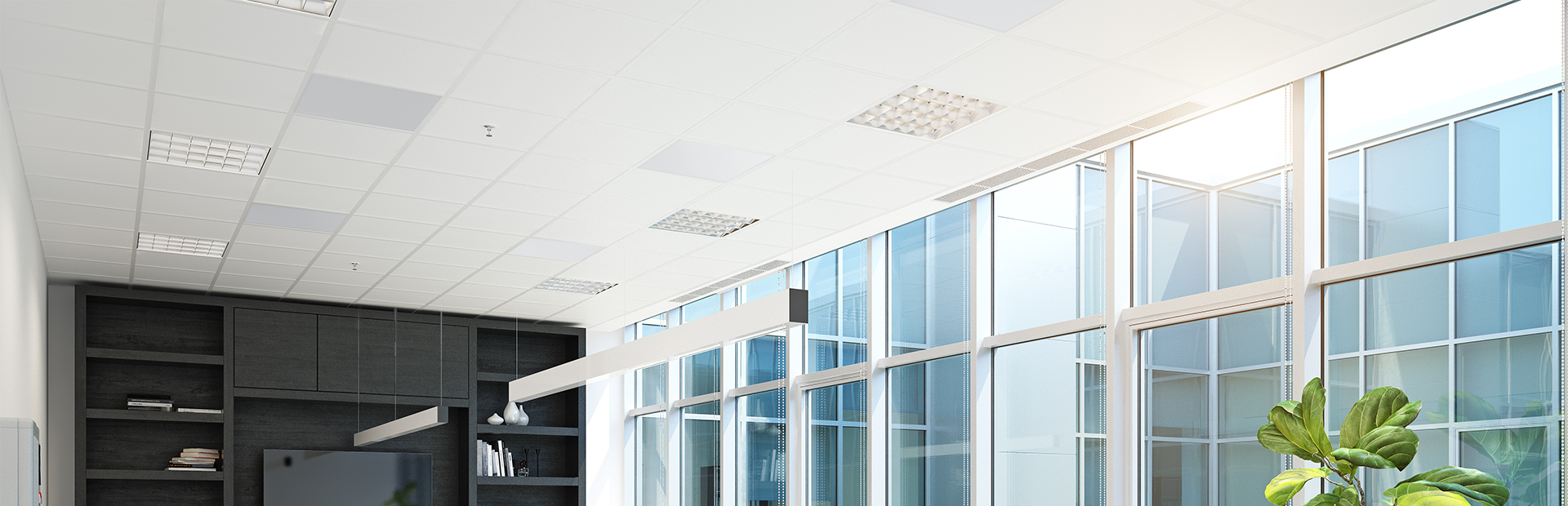

The grid ceiling panel has been developed for mounting in a grid ceiling. With its special frame, the SUNNYHEAT grid ceiling panel can be easily inserted into the grid ceiling.























Technical data

Surface ESG-Glass (Safety glass)
Glass type
Matt, Structure
Frame Frameless
Voltage 230 V / 50 Hz
Supply voltage U~ = 205 - 240 V
Radiation temperature
Variable between 0°C until 180°C electronically regulated
Control system
Integrated into heating system
Operating element and room thermostat
ISTC
Safety temperature limiting
Over temperature guard
Remote receiver
433,92 MHz
Standby consumption
0,5 W
Protection IP20
Mounting

mounting in a grid ceiling

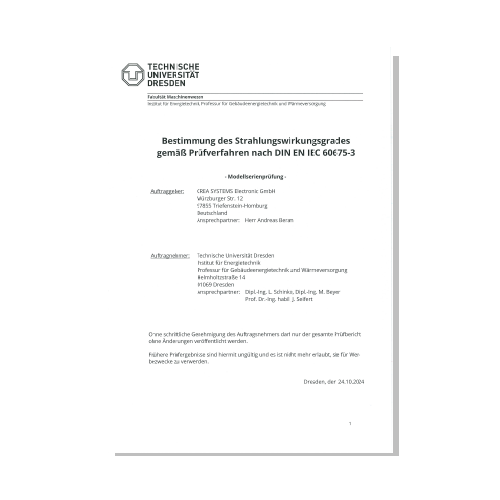

SUNNYHEAT Certifications

Certifications

CREA SYSTEMS offers you certified quality!

View more
Advantages infrared heating

Advantages

What are the strength of a SUNNYHEAT infrared heating?

View more
SUNNYHEAT FAQ

FAQ

You ask questions, SUNNYHEAT answers...

View more
About SUNNYHEAT

SUNNYHEAT

Discover the unique on SUNNYHEAT!

View more

Well regulated!

The integrated, clever energy management is the great advantage of SUNNYHEAT. With the high power and high radiant temperature you have a large capacity reserve in order to heat cooled rooms quickly, smoothly and efficiently. However, thanks to the innovative concept you do not consume more energy than necessary! The SUNNYHEAT heating regulates its energy consumption automatically down if the room has reached your desired temperature and only needs to be kept on temperature.

SUNNYHEAT is the heating system with brains!

This heater heats not only - SUNNYHEAT is a complete energy concept with numerous components, developed to protect your rooms before an unnecessarily high energy consumption!



Get to know better the SUNNYHEAT heating system - Click here for the brochure!

Models

Article Format Glass color Glass type Weight Max. Power Room size*
220477 62 x 62 cm white Structure about 8.6 kg 1000 W until 15 m²
220478 62 x 62 cm white Mat about 8.6 kg 1000 W until 15 m²
220479 59 x 59 cm white Structure about 8.6 kg 1000 W until 15 m²
220480 59 x 59 cm white Mat about 8.6 kg 1000 W until 15 m²
220483 62 x 122 cm white Structure about 15.6 kg 2000 W until 25 m²
220484 62 x 122 cm white Mat about 15.6 kg 2000 W until 25 m²
220485 59 x 119 cm white Structure about 15.6 kg 2000 W until 25 m²
220486 59 x 119 cm white Mat about 15.6 kg 2000 W until 25 m²



* The give values are only valid for rooms with the corresponding isolation.
