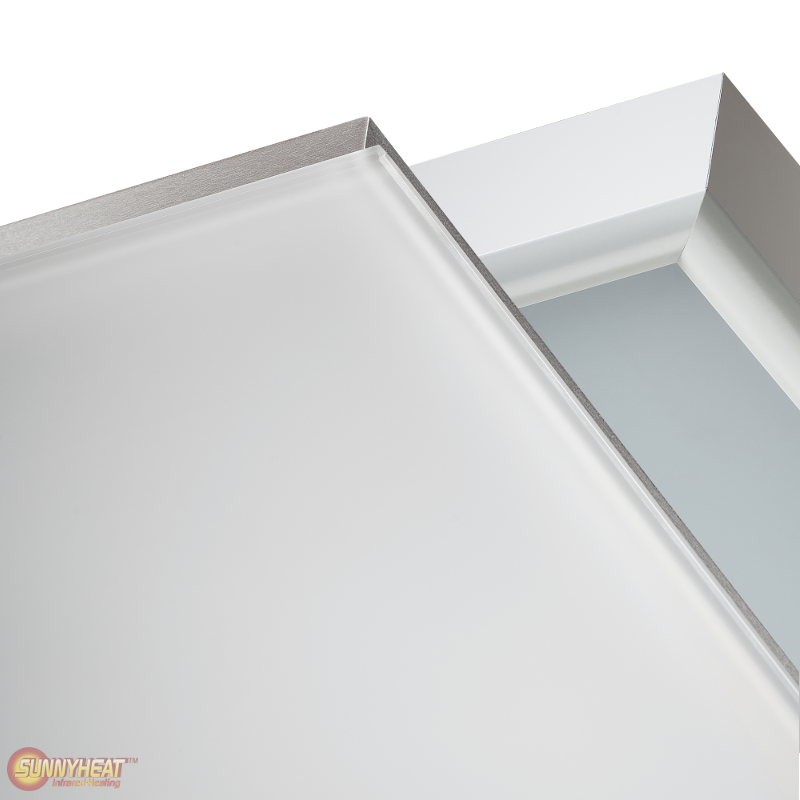

The glass type matt of SUNNYHEAT gives your rooms a modern flair. Despite or perhaps because of its plainy SUNNYHEAT infrared heaters fit with matt glass for each room type.























Technical data

Surface ESG-Glass (Safety glass)
Glass type
Matt
Frame Aluminium
Voltage 230 V / 50 Hz
Supply voltage U~ = 205 - 240 V
Radiation temperature
Variable between 0°C until 180°C electronically regulated
Control system
Integrated into heating system
Operating element and room thermostat
ISTC
Safety temperature limiting
Over temperature guard
Remote receiver
433,92 MHz
Standby consumption
0,5 W
Protection IP20
Mounting

Ceiling mounting,

wall mounting,

mounting with SUNNYHEAT wall mounting angle set,

mounting with SUNNYHEAT base



SUNNYHEAT Certifications

Certifications

CREA SYSTEMS offers you certified quality!

View more
Advantages infrared heating

Advantages

What are the strength of a SUNNYHEAT infrared heating?

View more
SUNNYHEAT FAQ

FAQ

You ask questions, SUNNYHEAT answers...

View more
About SUNNYHEAT

SUNNYHEAT

Discover the unique on SUNNYHEAT!

View more

Well regulated!

The integrated, clever energy management is the great advantage of SUNNYHEAT. With the high power and high radiant temperature you have a large capacity reserve in order to heat cooled rooms quickly, smoothly and efficiently. However, thanks to the innovative concept you do not consume more energy than necessary! The SUNNYHEAT heating regulates its energy consumption automatically down if the room has reached your desired temperature and only needs to be kept on temperature.

SUNNYHEAT is the heating system with brains!

This heater heats not only - SUNNYHEAT is a complete energy concept with numerous components, developed to protect your rooms before an unnecessarily high energy consumption!



Get to know better the SUNNYHEAT heating system - Click here for the brochure!

Models 60's series

The series with 60 cm width.

Article Format Glass color
Frame Weight Max. Power
Room size*
220338 60 x 60 cm white silver about 8.6 kg 1000 W until 15 m²
220198 60 x 60 cm white white matt about 8.6 kg 1000 W until 15 m²
220337 60 x 60 cm white black matt  about 8.6 kg 1000 W until 15 m²
220426 60 x 60 cm white frameless about 8.6 kg 1000 W until 15 m²
220340 60 x 60 cm black  silver about 8.6 kg 1000 W until 15 m²
220339 60 x 60 cm black white matt about 8.6 kg 1000 W until 15 m²
220210 60 x 60 cm black black matt about 8.6 kg 1000 W until 15 m²
220427 60 x 60 cm black frameless about 8.6 kg 1000 W until 15 m²
220262 60 x 60 cm RAL  RAL matt about 8.6 kg 1000 W until 15 m²
220428 60 x 60 cm RAL  frameless about 8.6 kg 1000 W until 15 m²
220342 60 x 90 cm white silver about 12.1 kg 1500 W until 20 m²
220199 60 x 90 cm white white matt about 12.1 kg 1500 W until 20 m²
220341 60 x 90 cm white black matt about 12.1 kg 1500 W until 20 m²
220415 60 x 90 cm white frameless about 12.1 kg 1500 W until 20 m²
220344 60 x 90 cm black silver about 12.1 kg 1500 W until 20 m²
220343 60 x 90 cm black white matt about 12.1 kg 1500 W until 20 m²
220211 60 x 90 cm black black matt about 12.1 kg 1500 W until 20 m²
220416 60 x 90 cm black frameless about 12.1 kg 1500 W until 20 m²
220263 60 x 90 cm RAL RAL matt about 12.1 kg 1500 W until 20 m²
220417 60 x 90 cm RAL frameless about 12.1 kg 1500 W until 20 m²
220346 60 x 120 cm white silver about 15.6 kg 2000 W until 25 m²
220200 60 x 120 cm white white matt about 15.6 kg 2000 W until 25 m²
220345 60 x 120 cm white black matt about 15.6 kg 2000 W until 25 m²
220396 60 x 120 cm white frameless about 15.6 kg 2000 W until 25 m²
220348 60 x 120 cm black silver about 15.6 kg 2000 W until 25 m²
220347 60 x 120 cm black white matt about 15.6 kg 2000 W until 25 m²
220212 60 x 120 cm black black matt about 15.6 kg 2000 W until 25 m²
220397 60 x 120 cm black frameless about 15.6 kg 2000 W until 25 m²
220264 60 x 120 cm RAL RAL matt about 15.6 kg 2000 W until 25 m²
220398 60 x 120 cm RAL frameless about 15.6 kg 2000 W until 25 m²
220452 60 x 150 cm white silver about 19.1 kg 2500 W until 30 m²
220441 60 x150 cm white white matt about 19.1 kg 2500 W until 30 m²
220451 60 x 150 cm white black matt about 19.1 kg 2500 W until 30 m²
220466 60 x 150 cm white frameless about 19.1 kg 2500 W until 30 m²
220454 60 x 150 cm black silver about 19.1 kg 2500 W until 30 m²
220453 60 x 150 cm black white matt about 19.1 kg 2500 W until 30 m²
220442 60 x 150 cm black black matt about 19.1 kg 2500 W until 30 m²
220467 60 x 150 cm black frameless about 19.1 kg 2500 W until 30 m²
220443 60 x 150 cm RAL RAL matt about 19.1 kg 2500 W until 30 m²
220468 60 x 150 cm RAL frameless about 19.1 kg 2500 W until 30 m²



Models 30's series

The series with 30 cm width.

Article Format Glass color
Frame Weight Max. Power Room size*
220350 30 x 60 cm white silver about 5.2 kg 500 W until 7 m²
220202 30 x 60 cm white white matt about 5.2 kg 500 W until 7 m²
220349 30 x 60 cm white  black matt  about 5.2 kg 500 W until 7 m²
220352 30 x 60 cm black silver about 5.2 kg 500 W until 7 m²
220351 30 x 60 cm black white matt about 5.2 kg 500 W until 7 m²
220243 30 x 60 cm black  black matt about 5.2 kg 500 W until 7 m²
220258 30 x 60 cm RAL RAL matt about 5.2 kg 500 W until 7 m²
220354 30 x 90 cm white silver about 6.9 kg 750 W until 10 m²
220203 30 x 90 cm white white matt about 6.9 kg 750 W until 10 m²
220353 30 x 90 cm white black matt about 6.9 kg 750 W until 10 m²
220356 30 x 90 cm black silver about 6.9 kg 750 W until 10 m²
220355 30 x 90 cm black white matt about 6.9 kg 750 W until 10 m²
220213 30 x 90 cm black black matt about 6.9 kg 750 W until 10 m²
220259 30 x 90 cm RAL RAL matt about 6.9 kg 750 W until 10 m²
220358 30 x 120 cm white silver about 8.7 kg 1000 W until 15 m²
220204 30 x 120 cm white white matt about 8.7 kg 1000 W until 15 m²
220357 30 x 120 cm white black matt about 8.7 kg 1000 W until 15 m²
220360 30 x 120 cm black silver about 8.7 kg 1000 W until 15 m²
220359 30 x 120 cm black white matt about 8.7 kg 1000 W until 15 m²
220214 30 x 120 cm black black matt about 8.7 kg 1000 W until 15 m²
220260 30 x 120 cm RAL RAL matt about 8.7 kg 1000 W until 15 m²
220362 30 x 150 cm white silver about 10.5 kg 1250 W until 18 m²
220205 30 x 150 cm white white matt about 10.5 kg 1250 W until 18 m²
220361 30 x 150 cm white black matt about 10.5 kg 1250 W until 18 m²
220364 30 x 150 cm black silver about 10.5 kg 1250 W until 18 m²
220363 30 x 150 cm black white matt about 10.5 kg 1250 W until 18 m²
220215 30 x 150 cm black black matt about 10.5 kg 1250 W until 18 m²
220261 30 x 150 cm RAL RAL matt about 10.5 kg 1250 W until 18 m²



* The given values are only valid for rooms with the corresponding isolation.
